Leave your worries onshore.
Highest service quality.

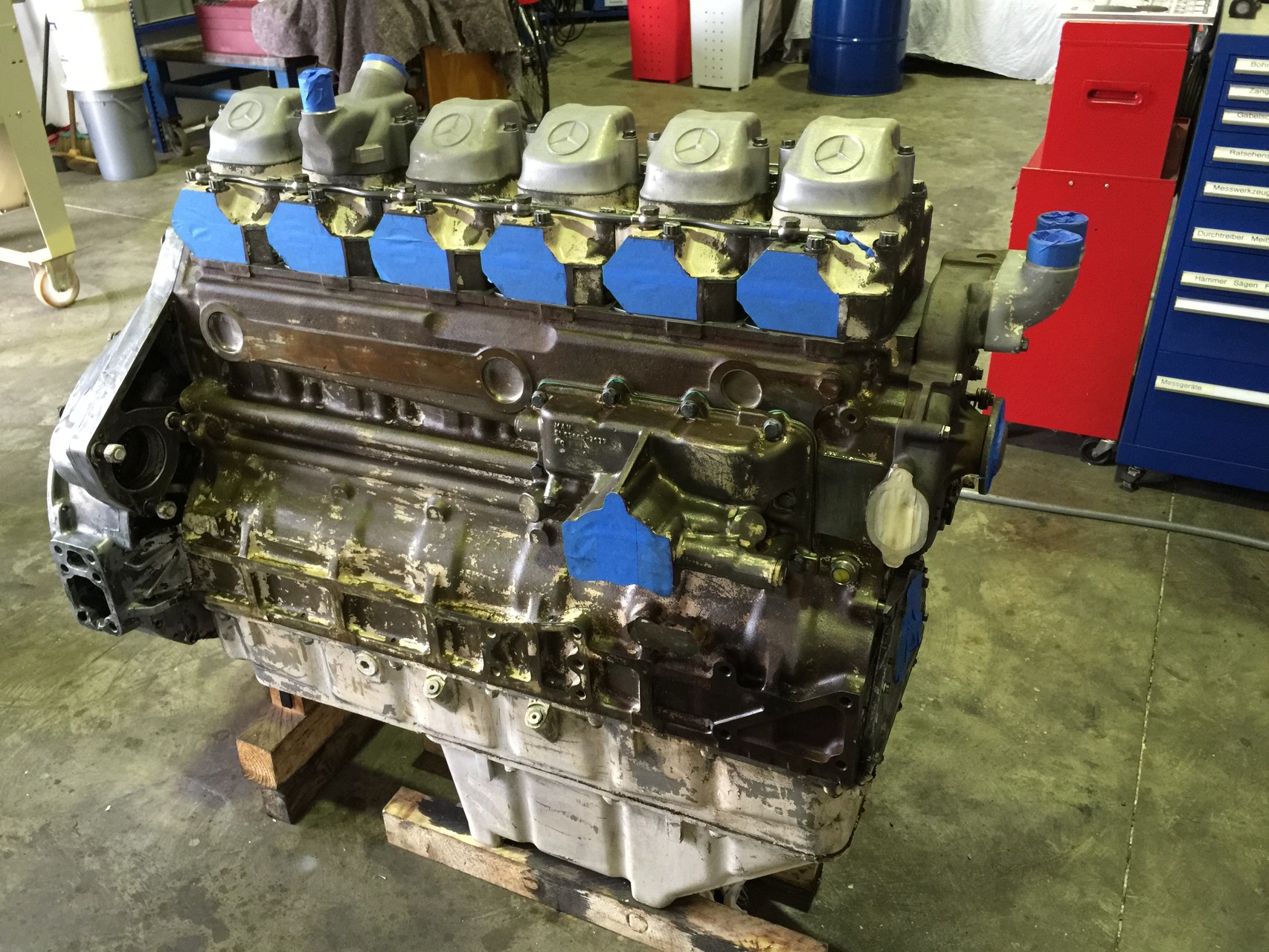

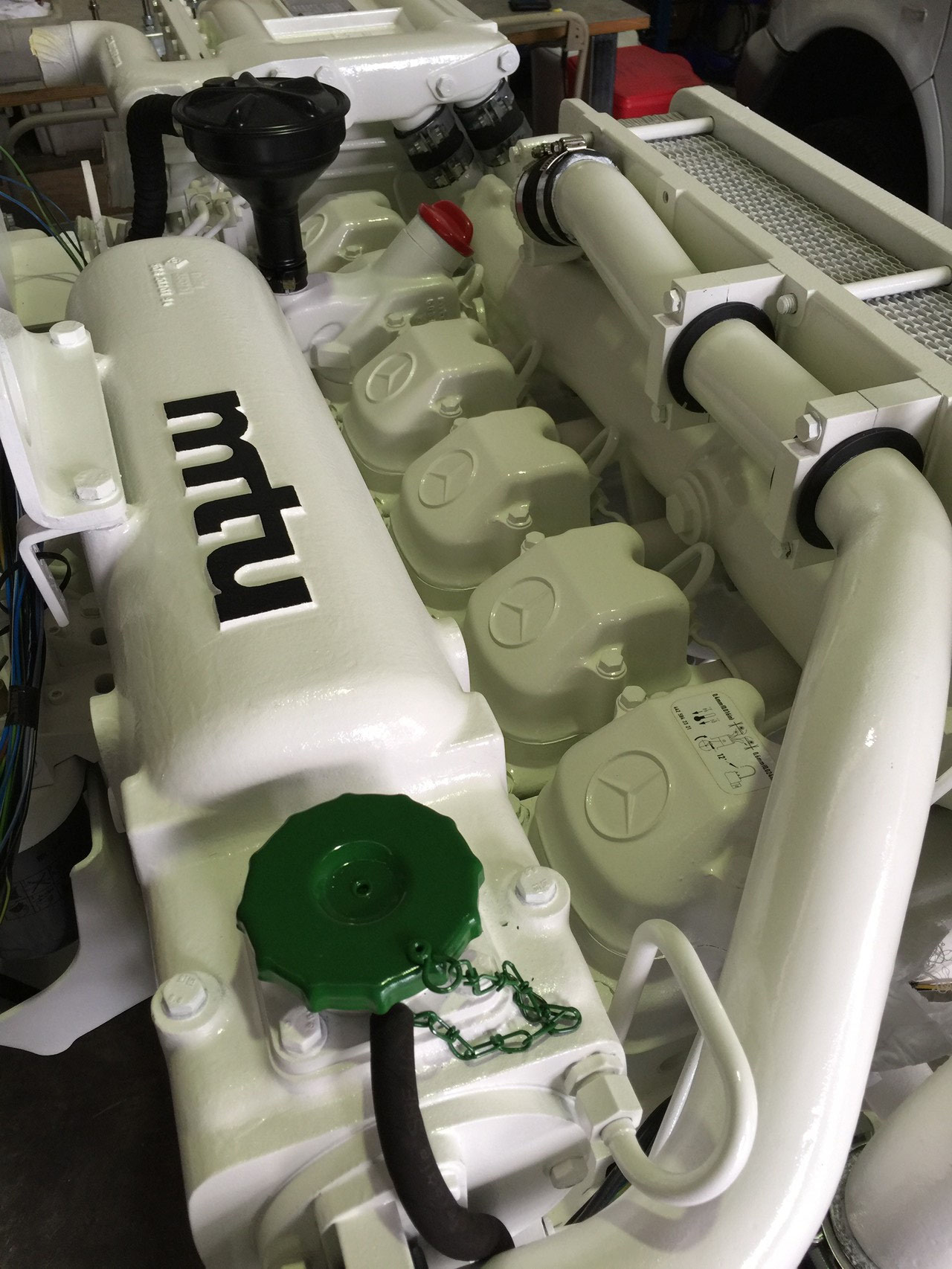

- Specialized in MTU Series 099, 183, 396, 595, 1163, 2000, 4000

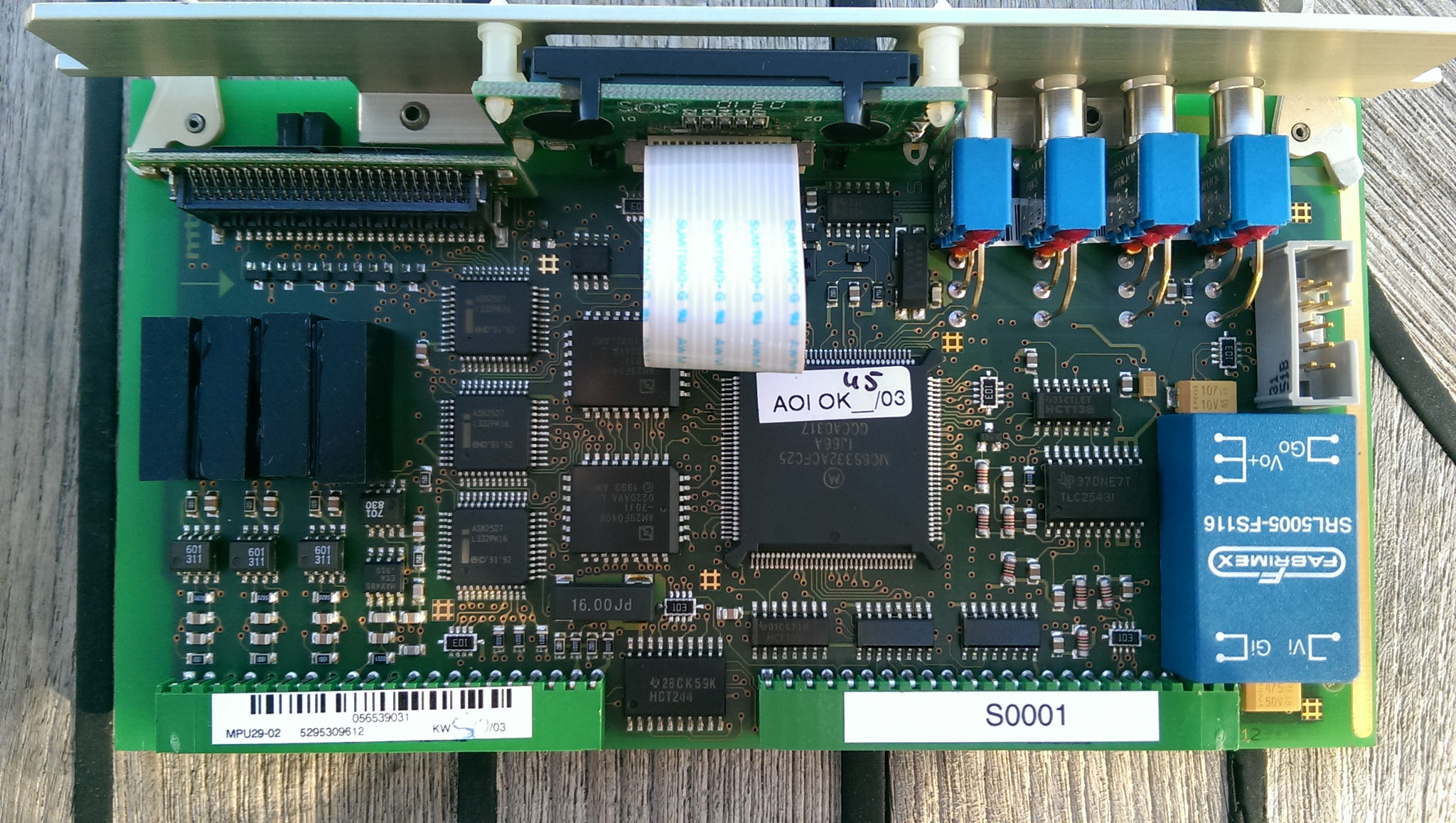

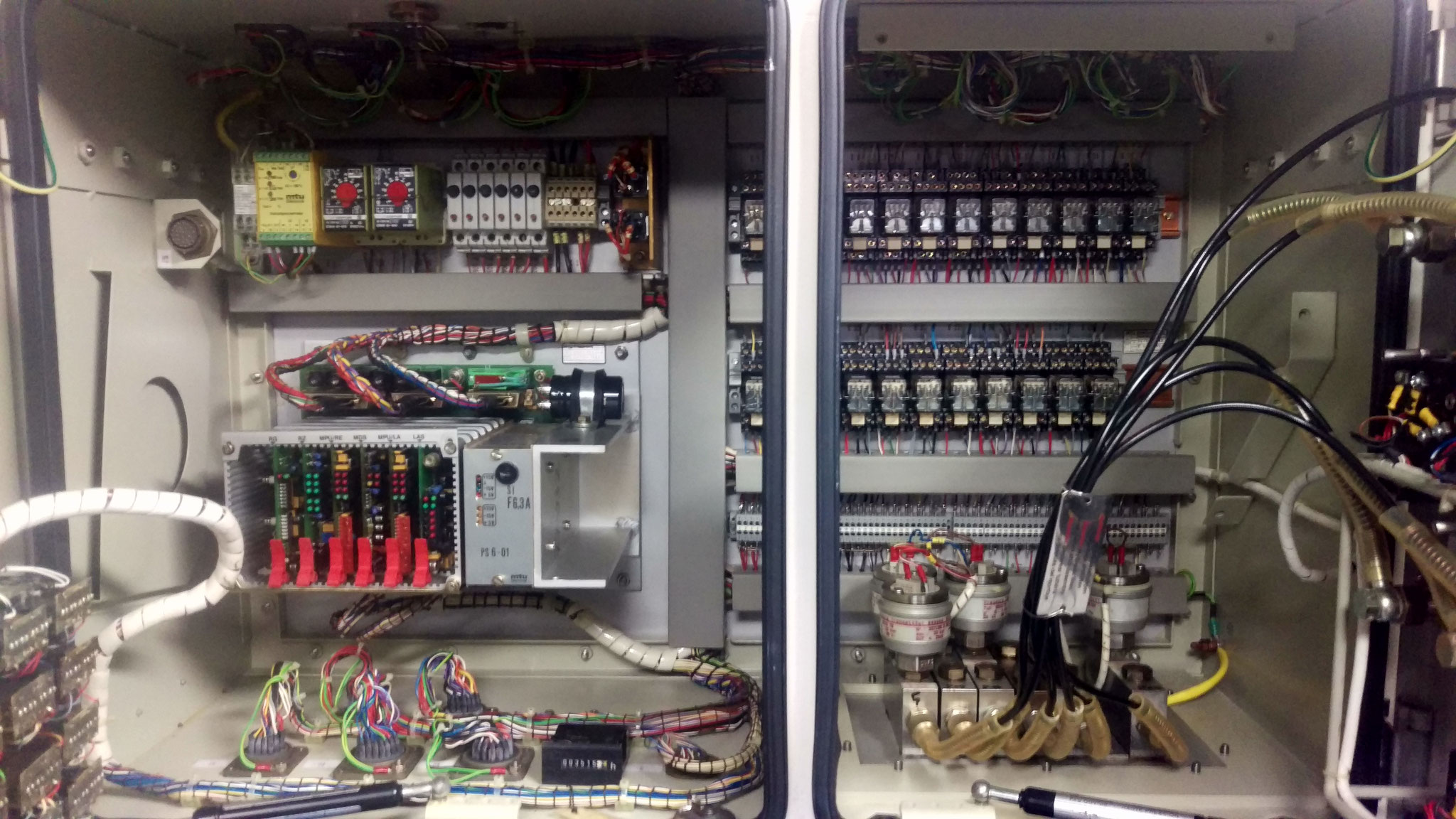

- Specialized in MTU Automation- and Engine Control Systems

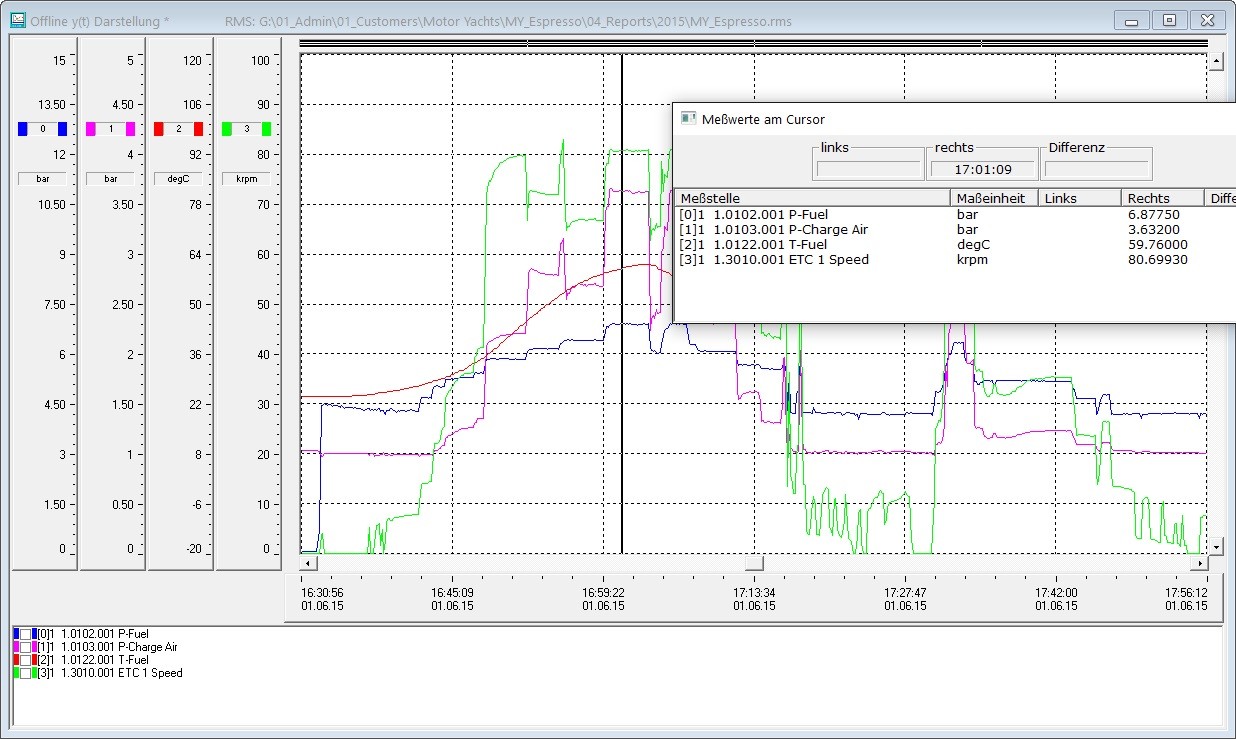

- Diagnosis & parameter adjustment with MTU DiaSys

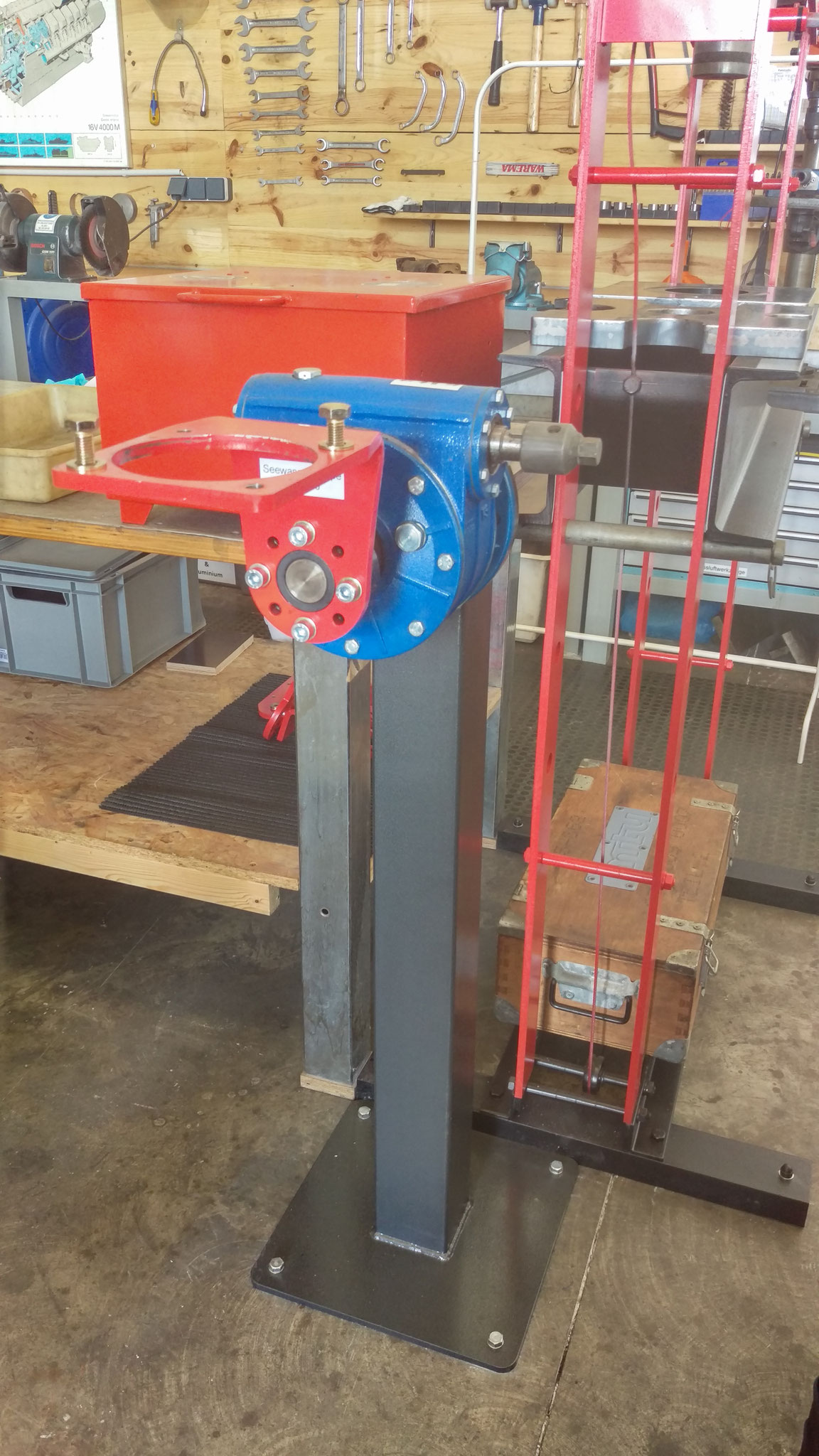

- Service and reconditioning of alternators, starter-motors and compressors

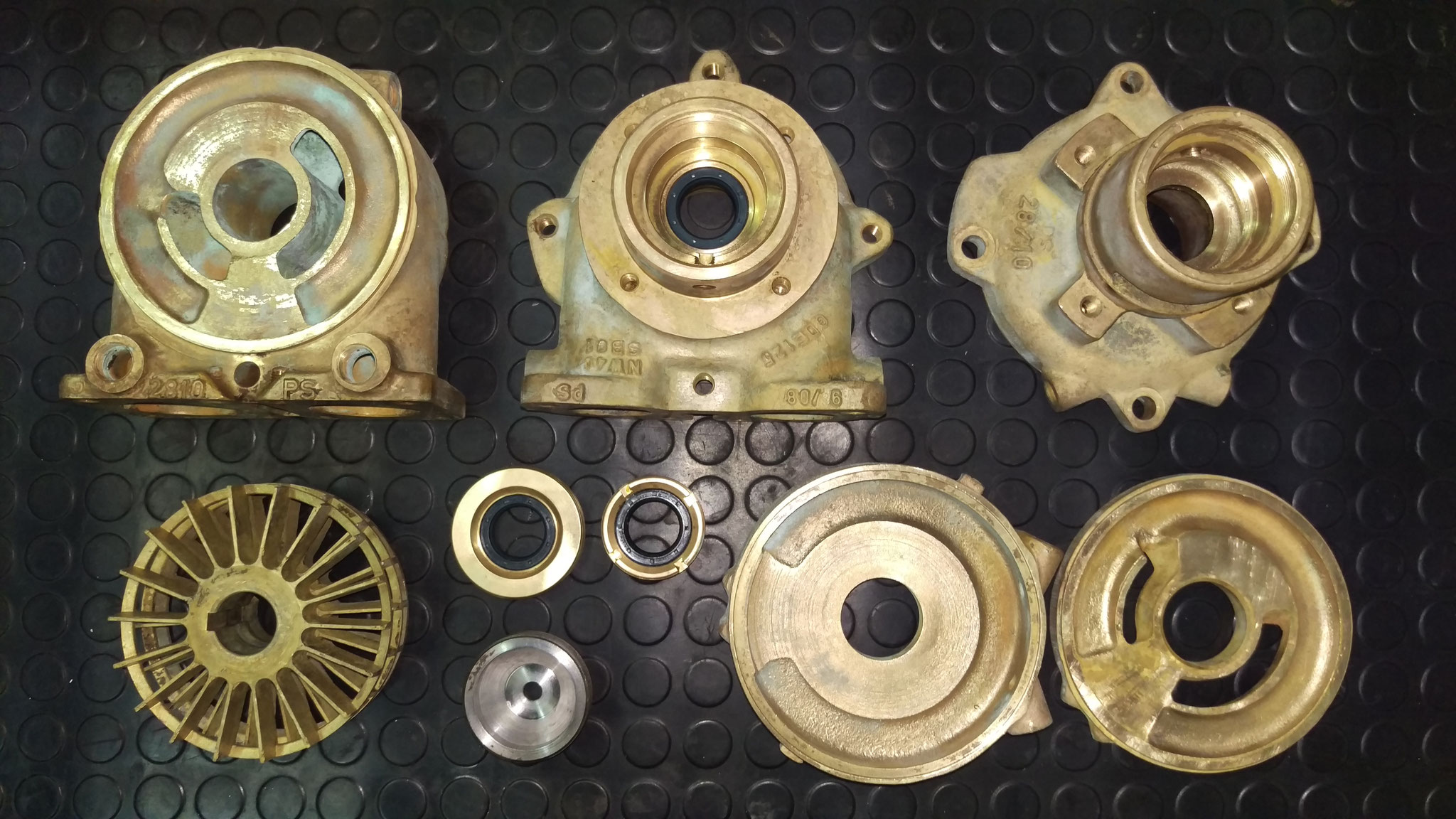

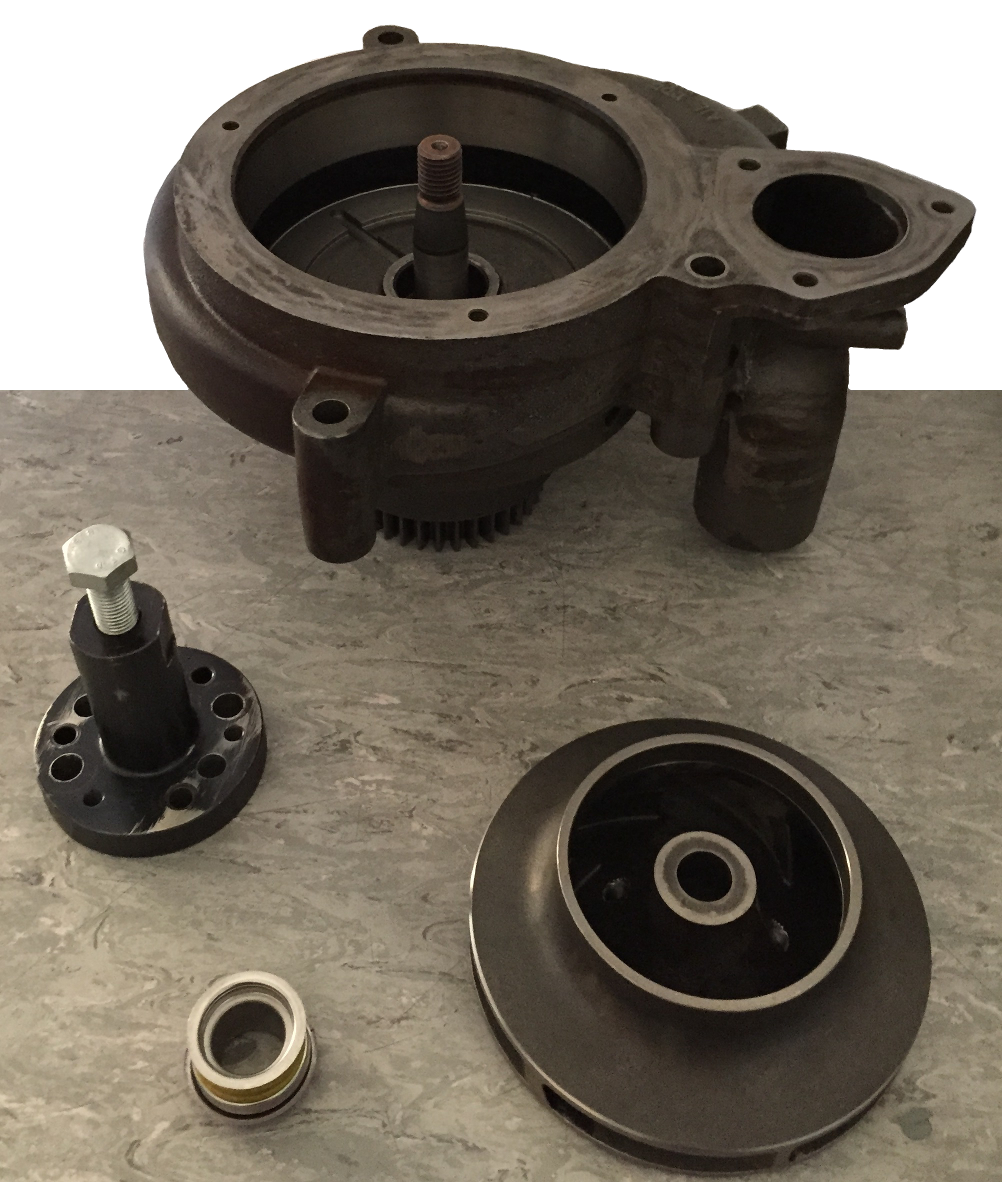

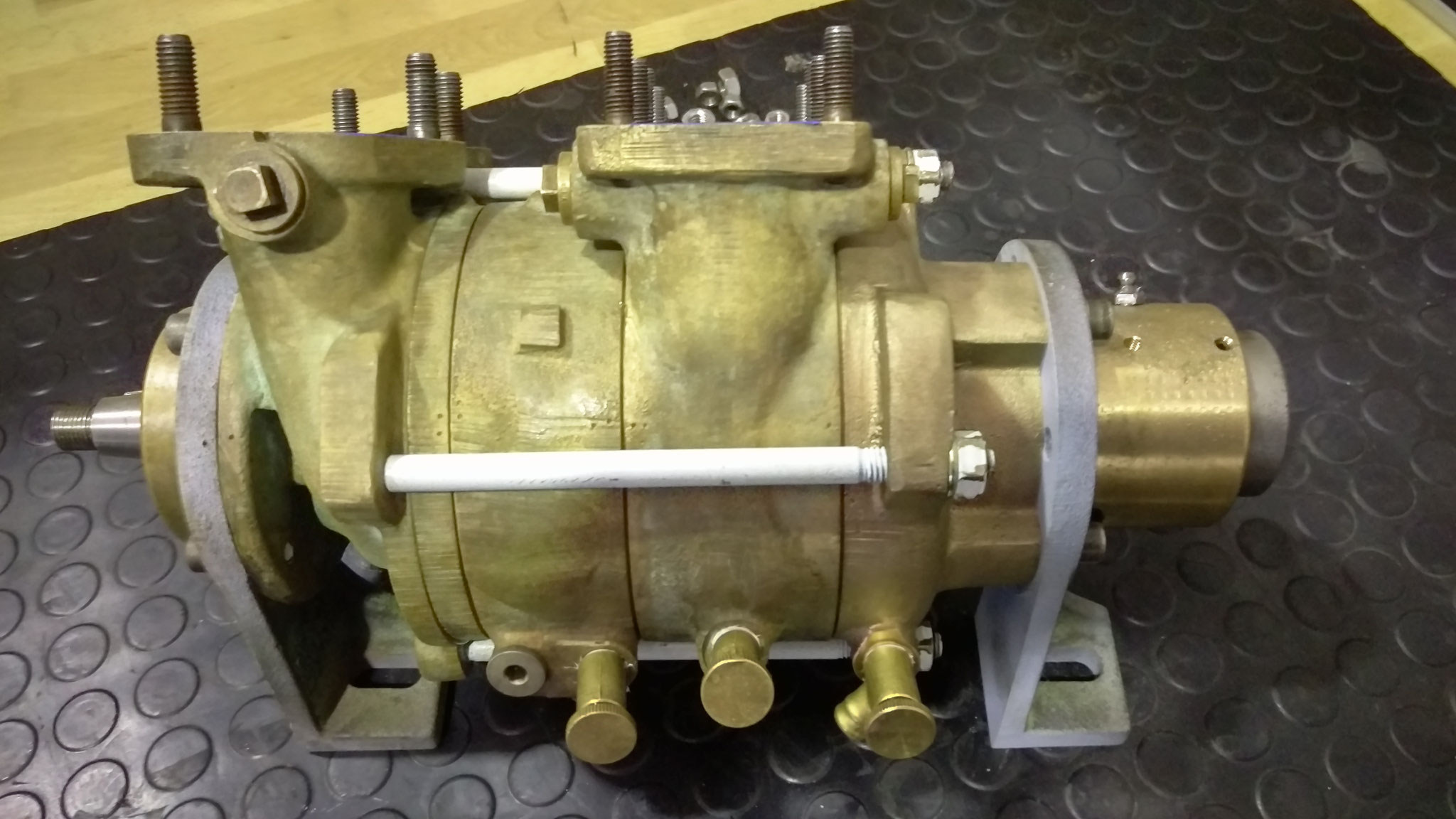

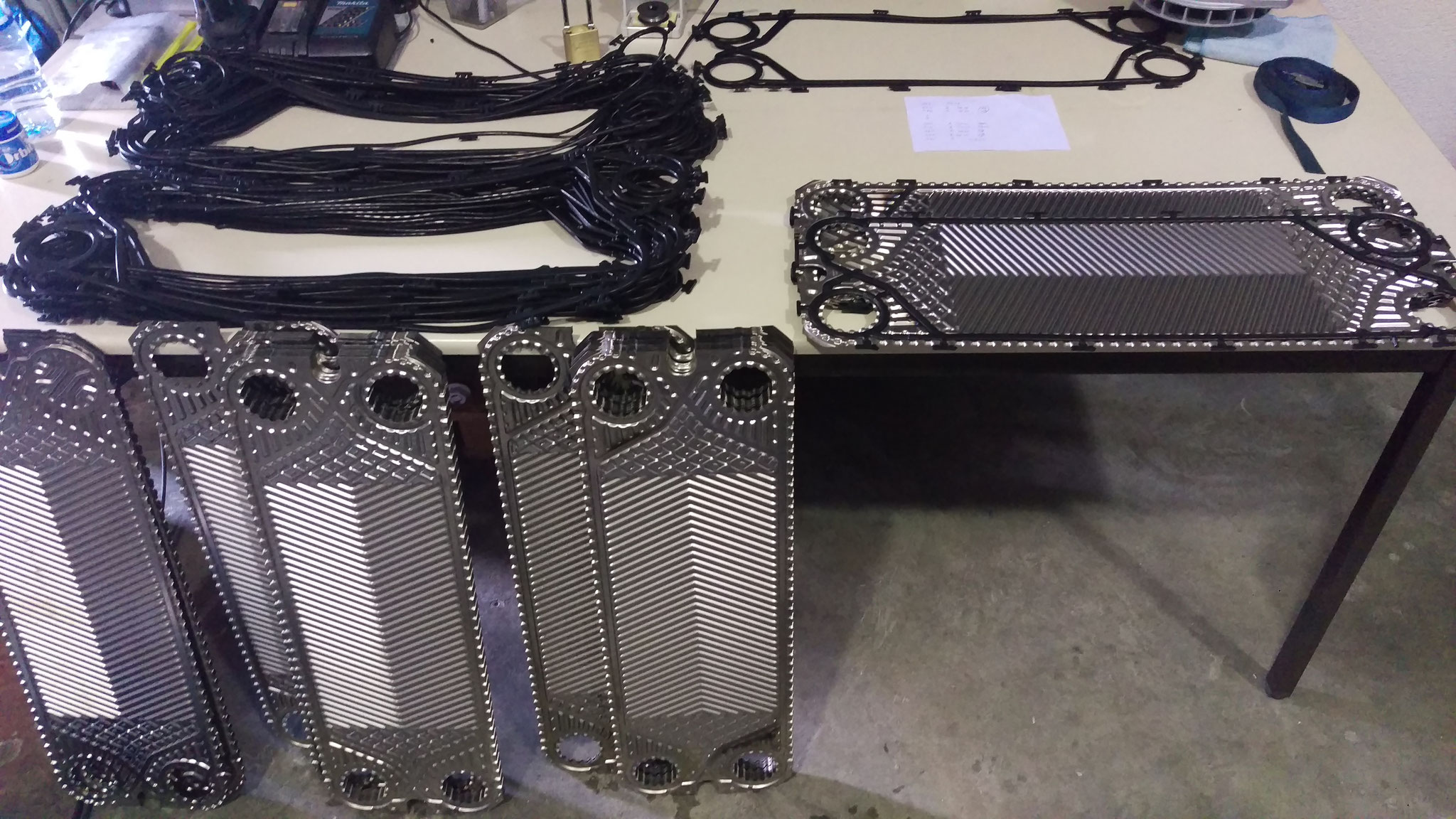

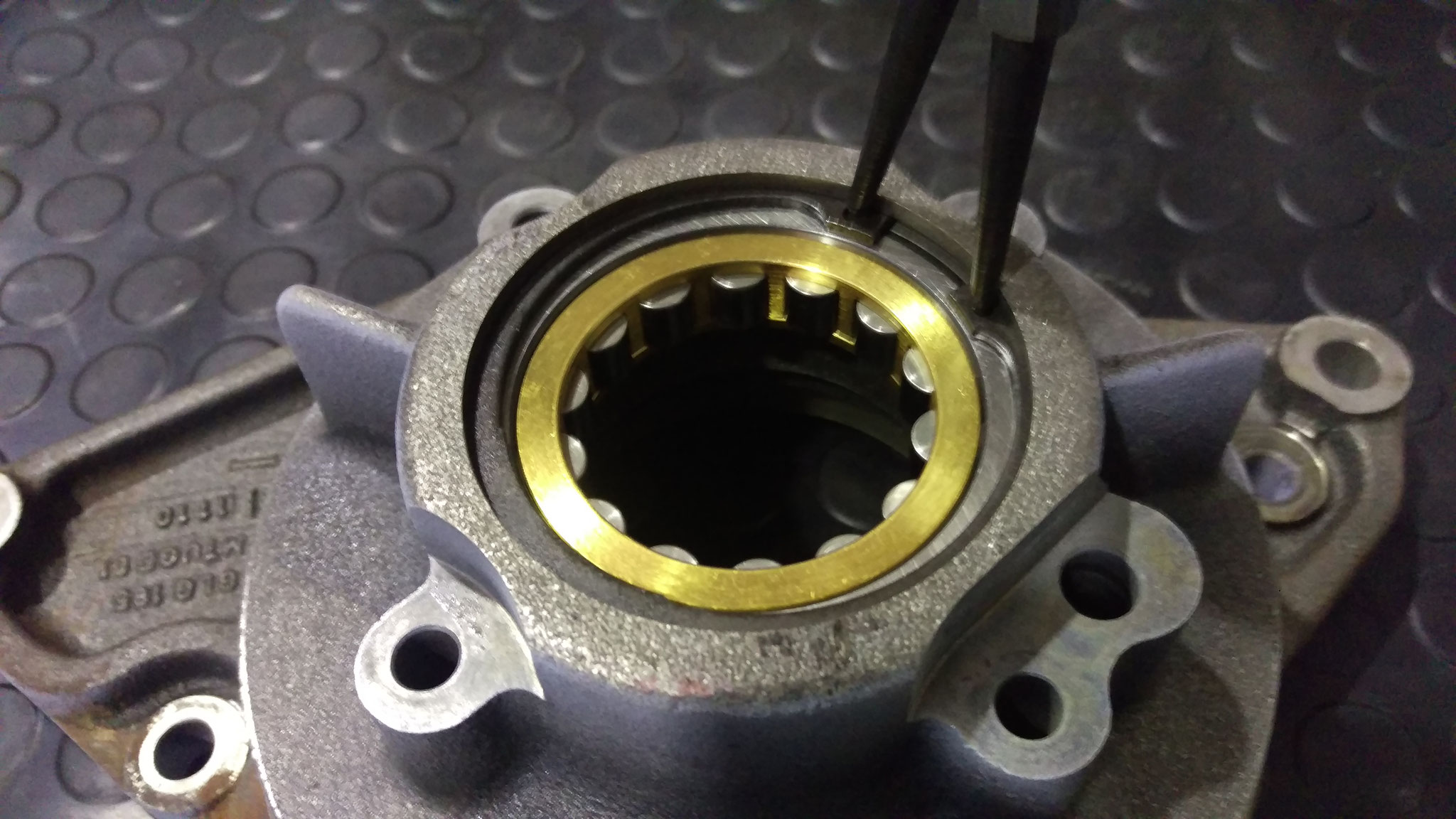

- Repairs and spares for water pumps of MTU, Steimel, Sihi, Johnson, Jabsco and Rusch

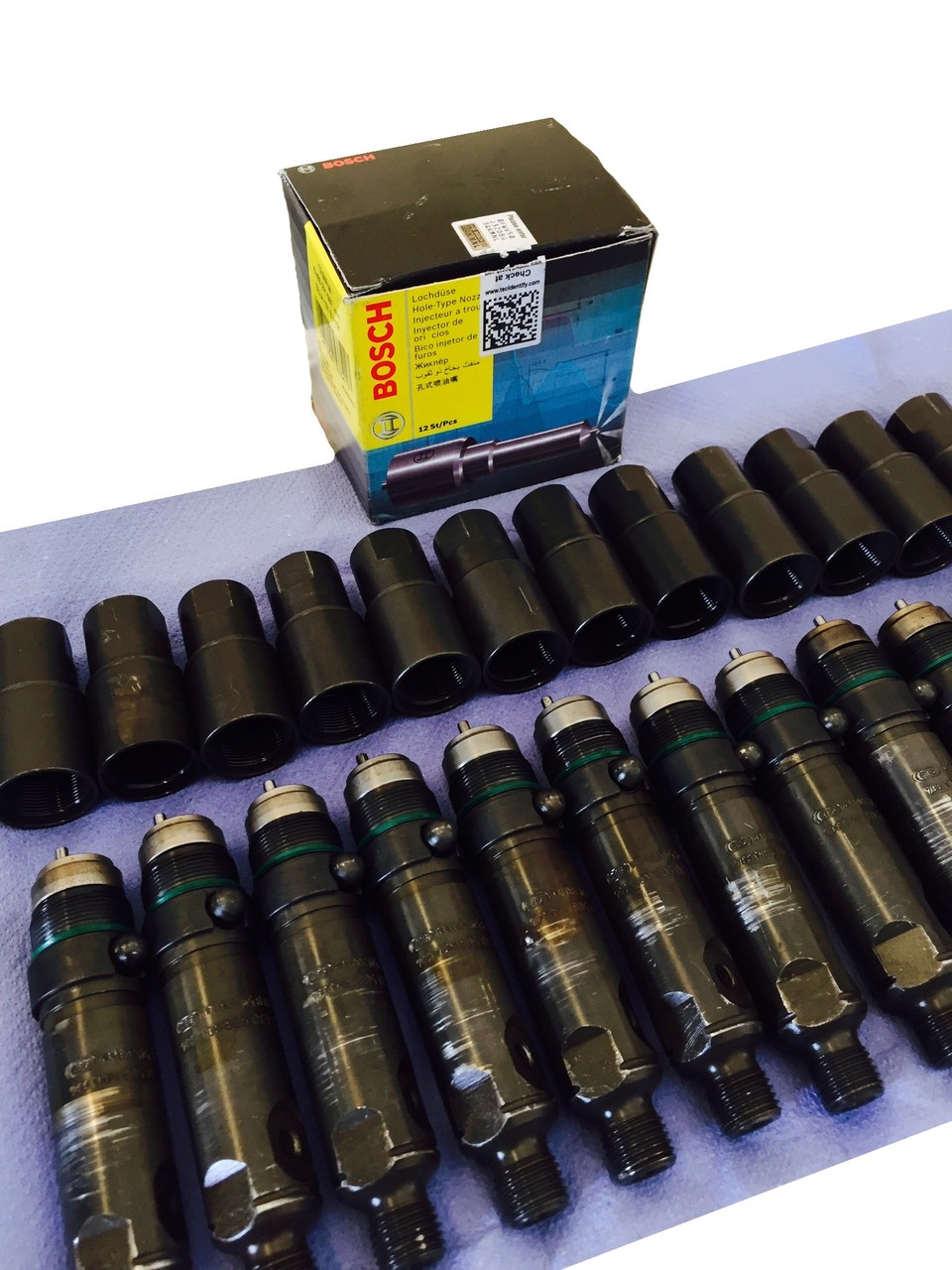

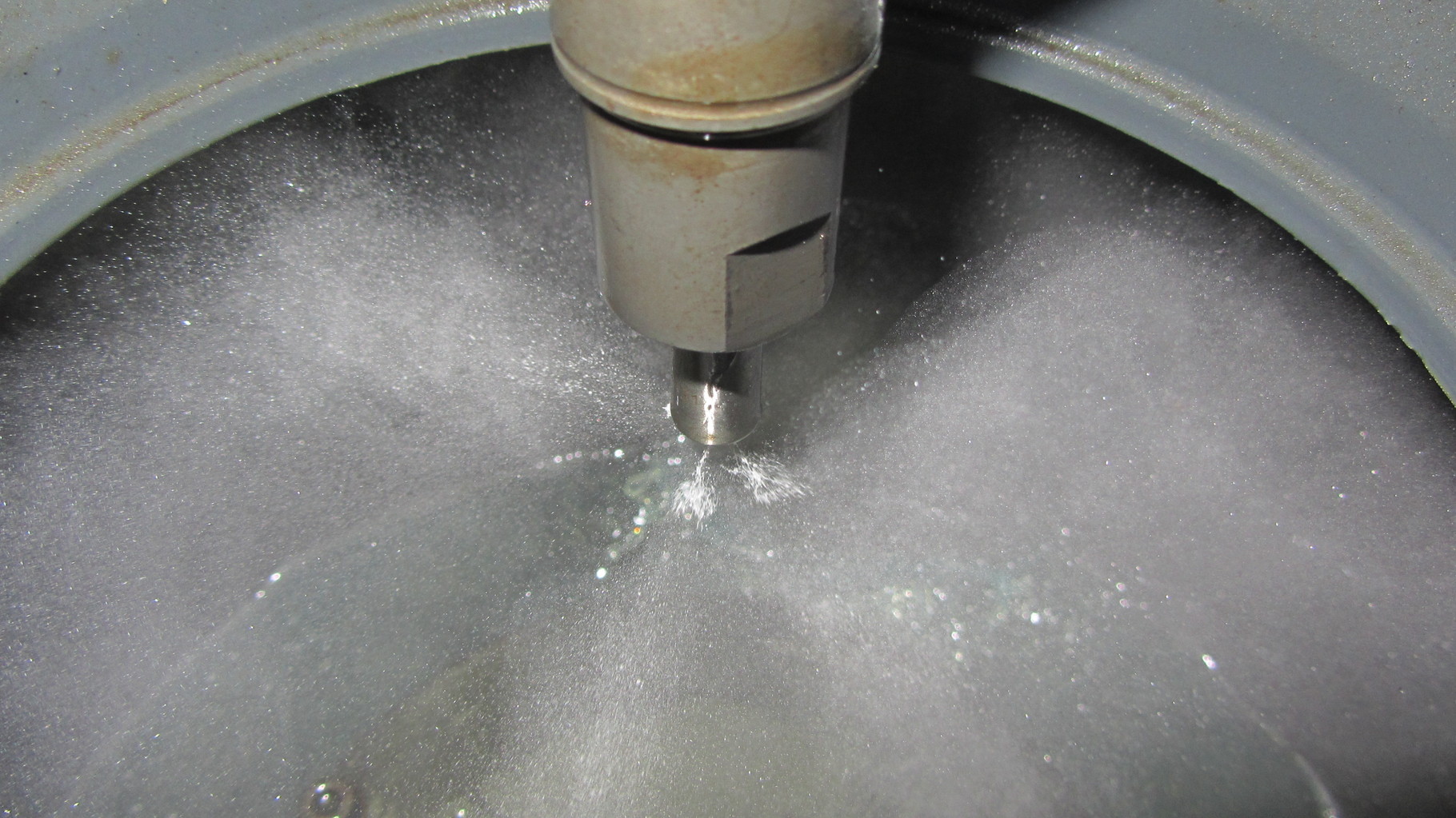

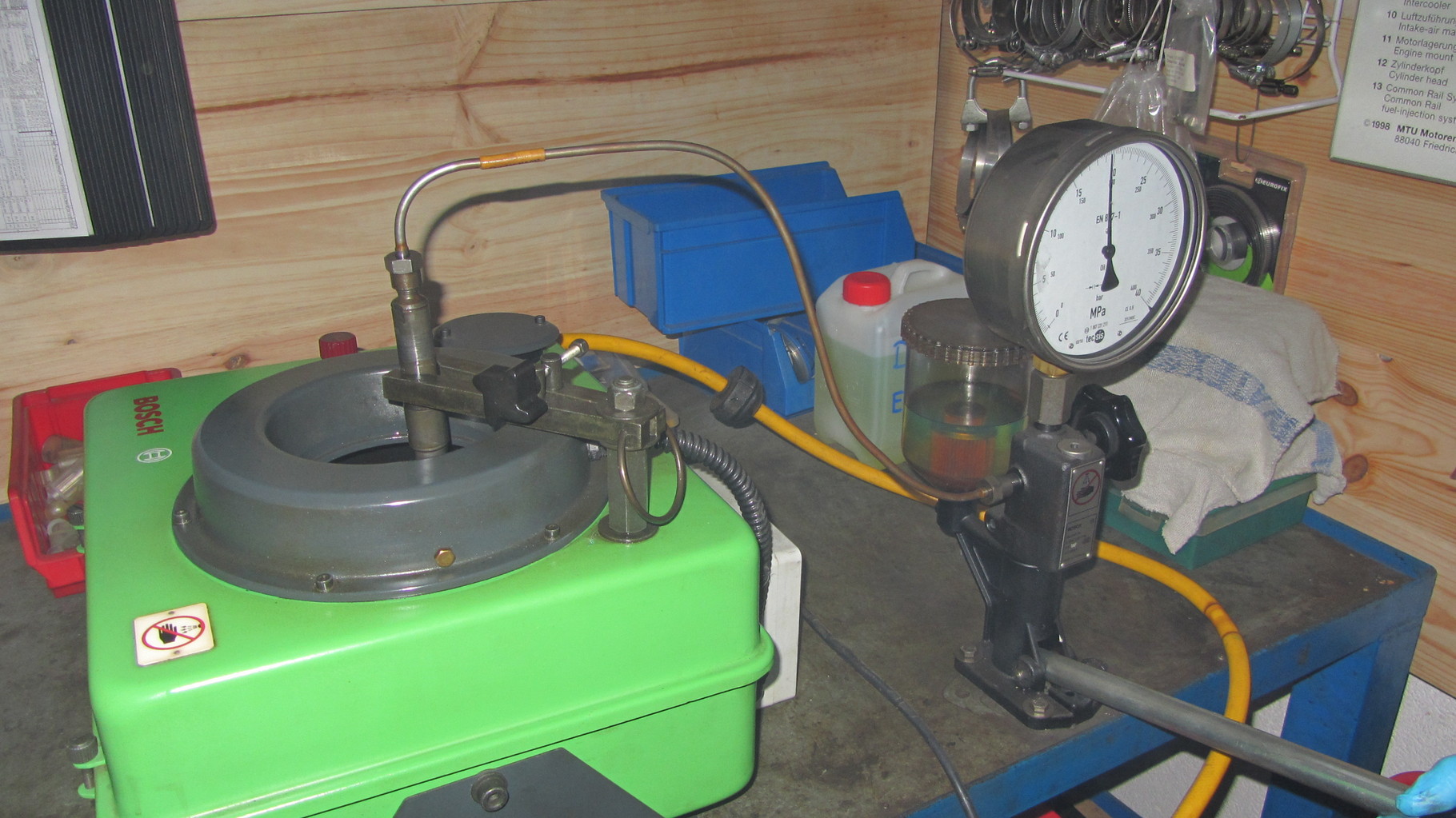

- Overhaul of injection pumps and injectors

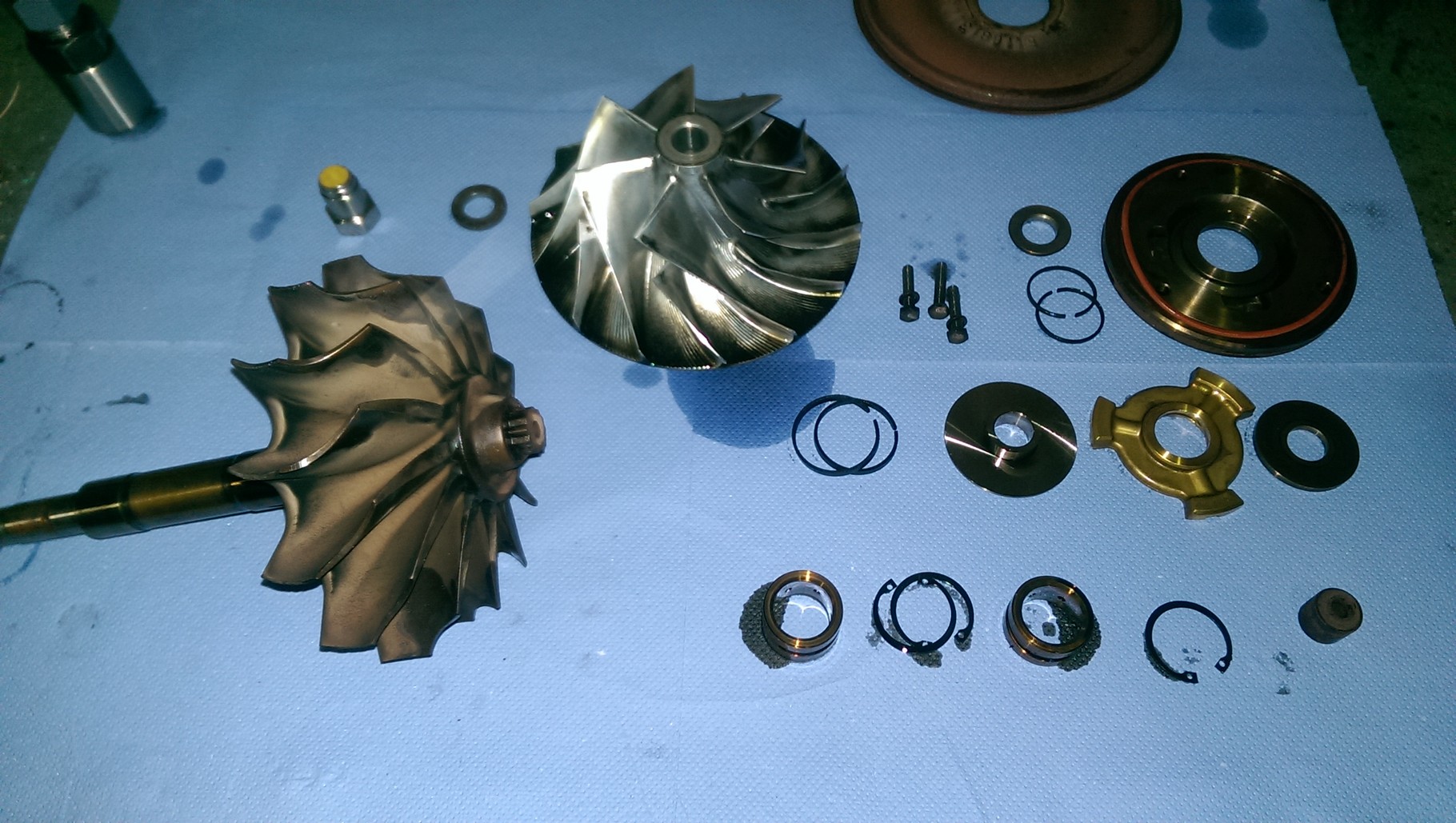

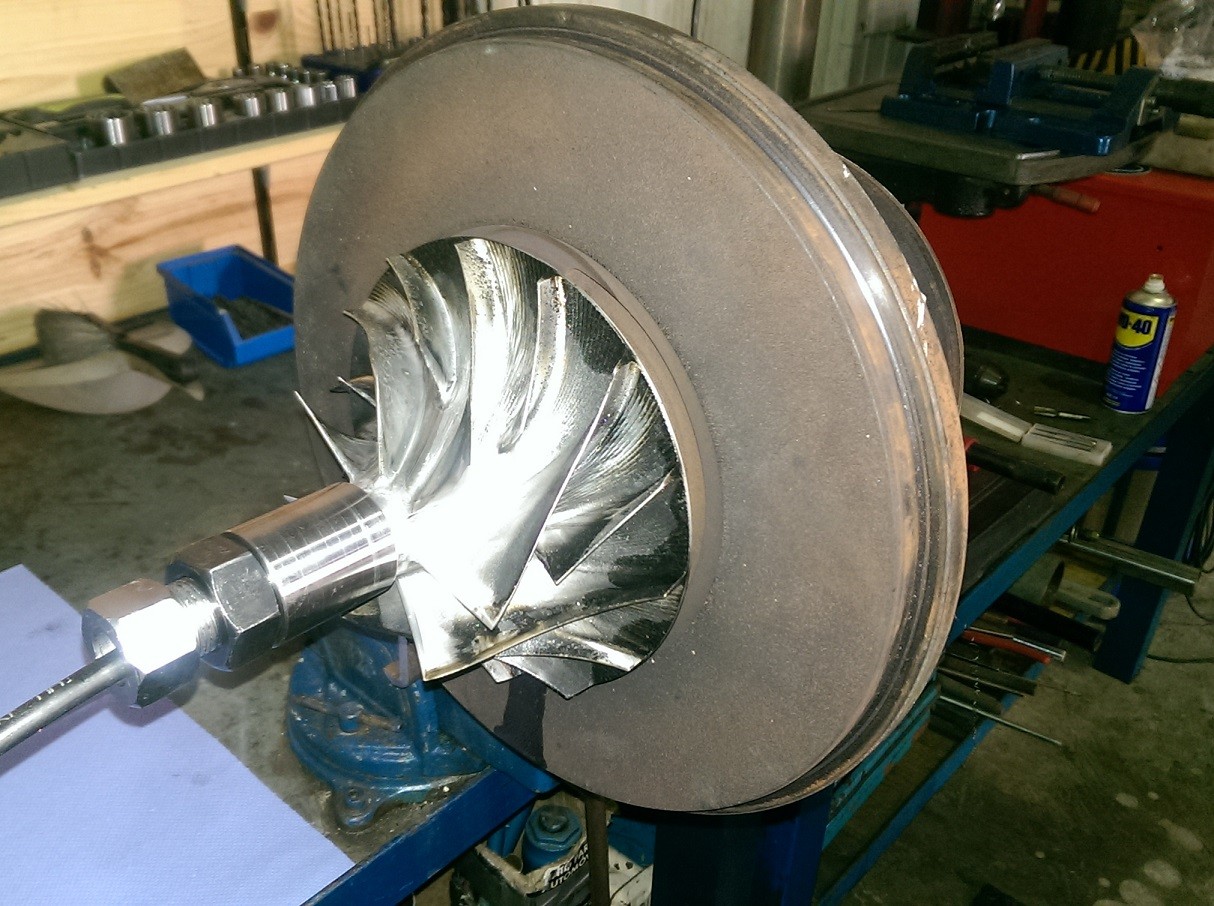

- Overhaul of turbo-chargers
- Overhaul of starter-motors & alternators
- Surveys & creation of engine reports
- Engine and transmission alignments

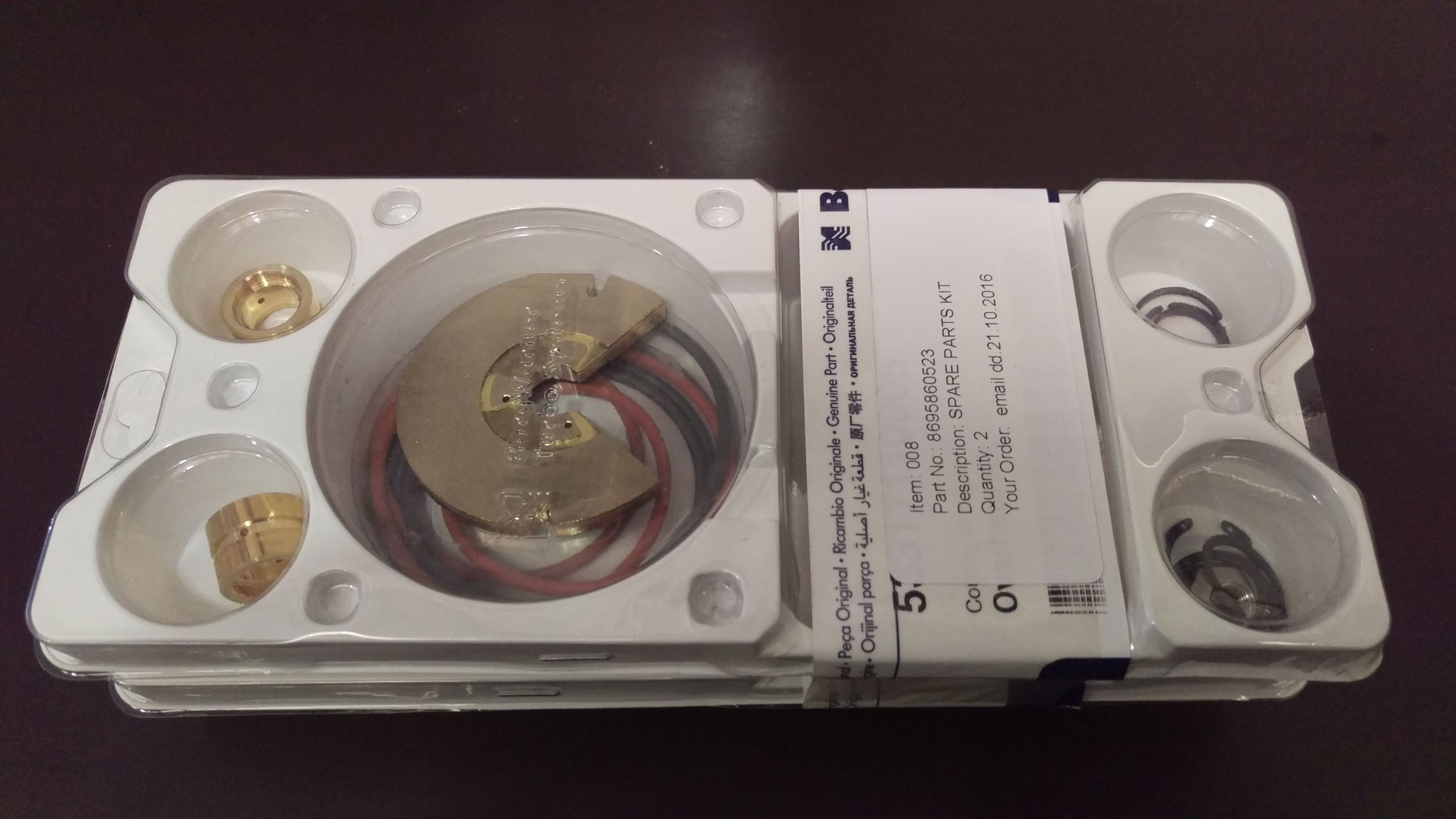

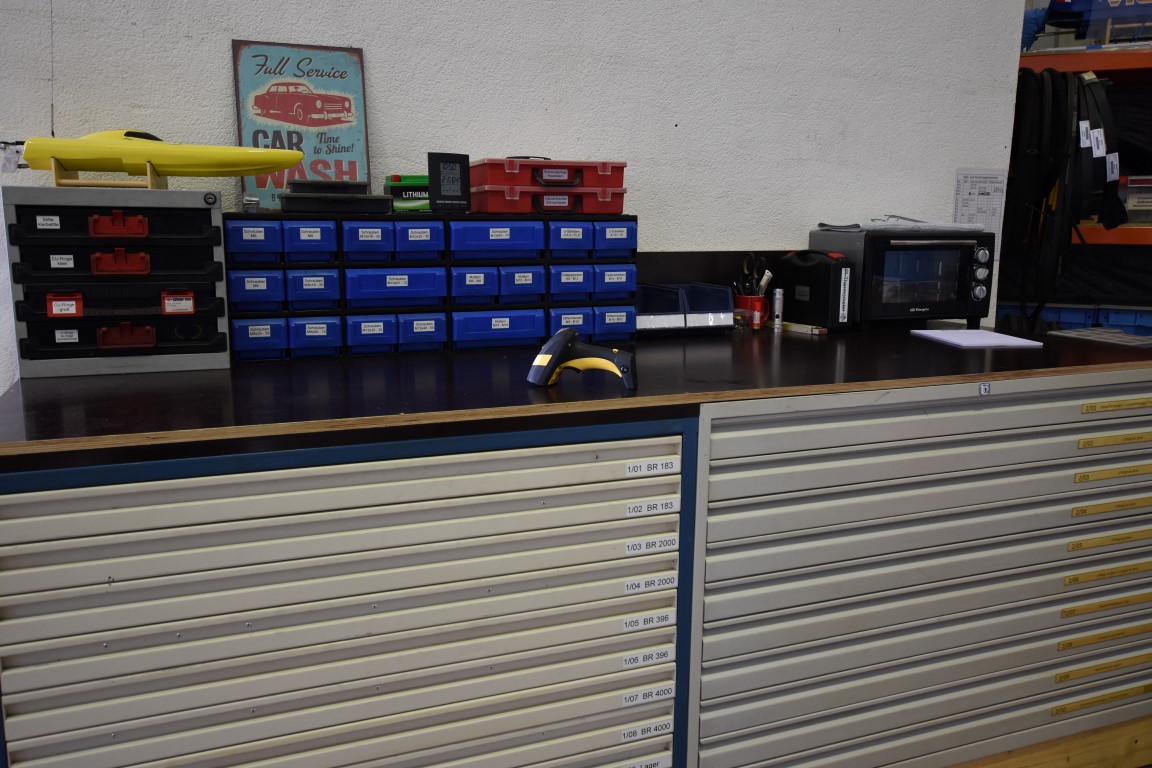

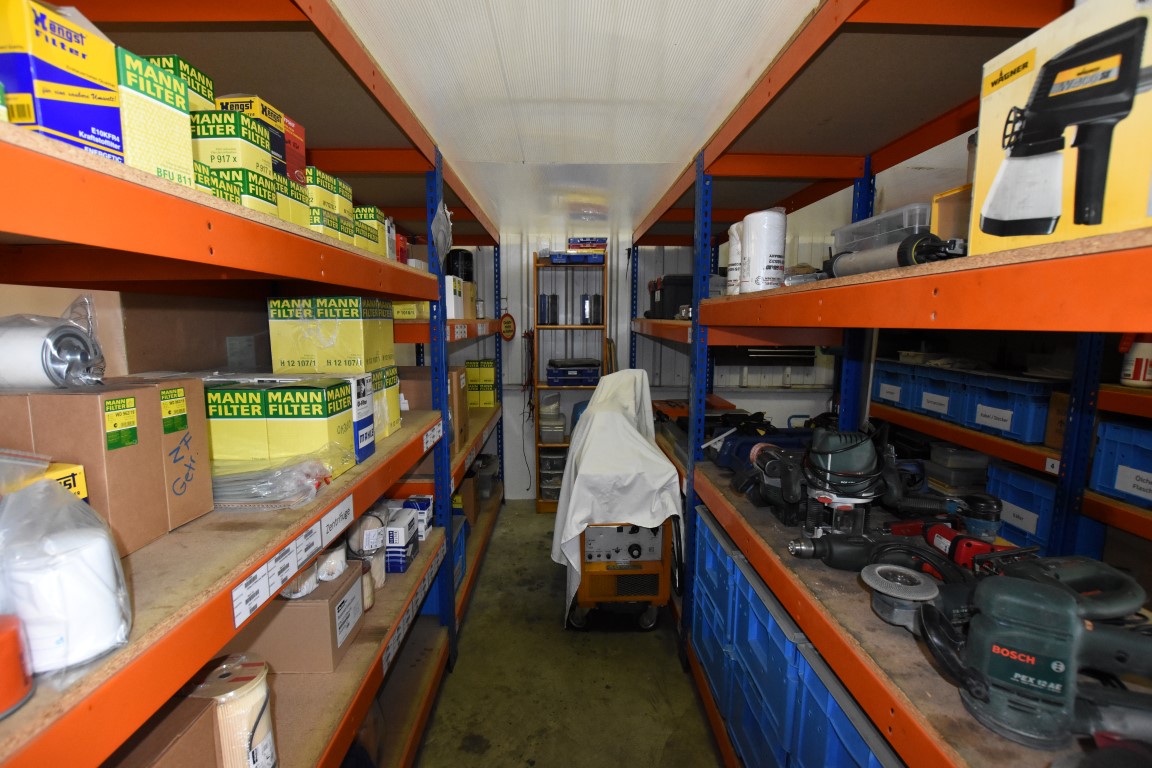

- Spare parts stockage and support for your carefree trips
Laser Shaft Alignment
Now available from Diesel-Doc!
Get in contact for further information and prices for shaft alignment.
Shaft alignment
Reduce machinery breakdowns by up to 50% and increase your uptime
It’s a fact. Shaft misalignment is responsible for up to 50% of all costs related to rotating machinery breakdowns. Accurately aligning shafts can prevent a large number of machinery breakdowns
and reduce unplanned downtime that results in a loss of production. In today’s challenging environment of reducing costs and optimizing assets, the necessity of accurate shaft alignment is now
greater than ever.
What is shaft misalignment?

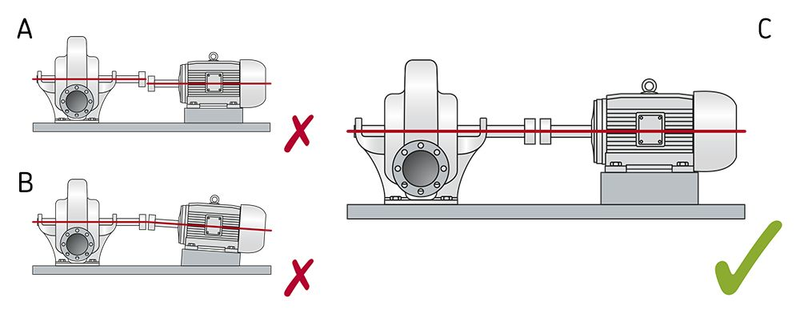

Machines need to be aligned in both horizontal and vertical plane. The misalignment can be due to parallel or angular misalignment and in fact is a combination of both.
A. Parallel misalignment (or offset)
B. Angular misalignment
C. Correct alignment
|

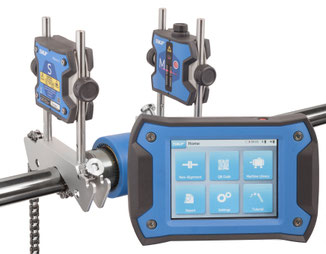

Technical data |
|
|
Designation |
TKSA 41 |
|
Sensors and communication |
29 mm (1.1 in.) CCD with line laser Class 2 |
|
System measuring distance |
7 to 400 cm |
|
Measuring errors |
< 0,5% ±5 µm |
|
Alignment method |
Alignment of horizontal shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 90° rotation), soft foot |
|
Live correction values |
Vertical and horizontal |
|
Fixture |
2 × V-brackets with chains, width 21 mm or 2 x Magnetic V-brackets |
|
Shaft diameters |
20 to 300 mm |
|
Max. coupling height |
105 mm with standard rods |
|
Operating temperature |
0 to 45 °C |
SPECIFICATIONS

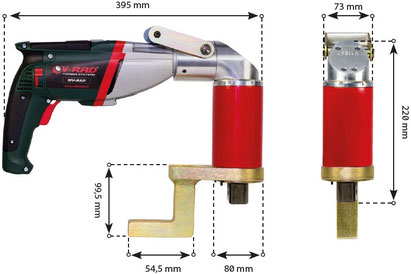

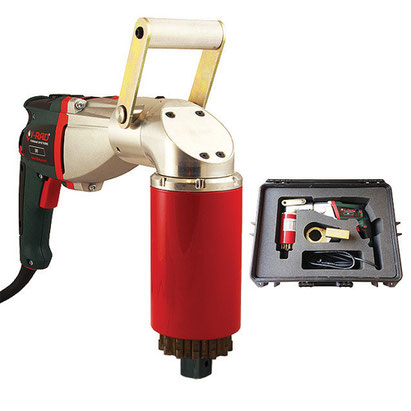

• TORQUE RANGE: 340 - 3.400 Nm.
• SPEED: 6 RPM.
• SQUARE DRIVE: 1 inch square drive.
• REPEATABILITY ON SAME JOINT *: +/- 3,5%.
Get in contact for further information and prices for your task.
CNC Gasket Fabrication via Laser or Milling
We can fabricate paper gaskets of up to
800mm x 600mm in one piece, on our CNC milling machine.
Either from an old gasket, as template, or from a variety of formats such as:
DXF
DWG
IGES
STEP
…
Gasket material in stock:
Frenzelit novapress® FLEXIBLE/815 in 1,0 / 1,5 / 2,0mm
Frenzelit isoplan® 1100 GREENLINE for exhaust systems in 2,0mm
Get in contact for further information and prices.
